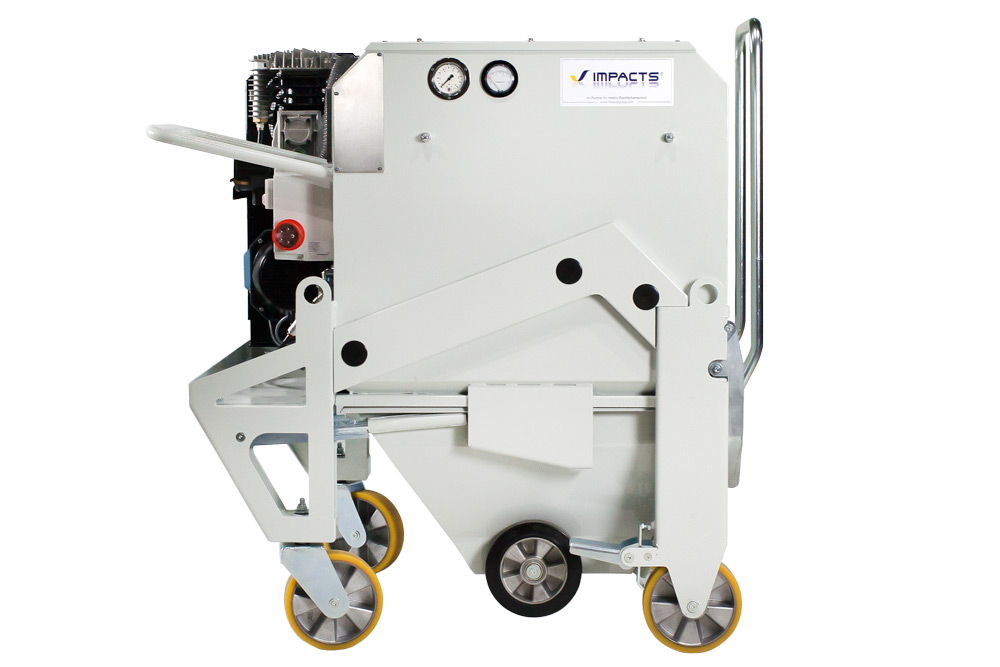

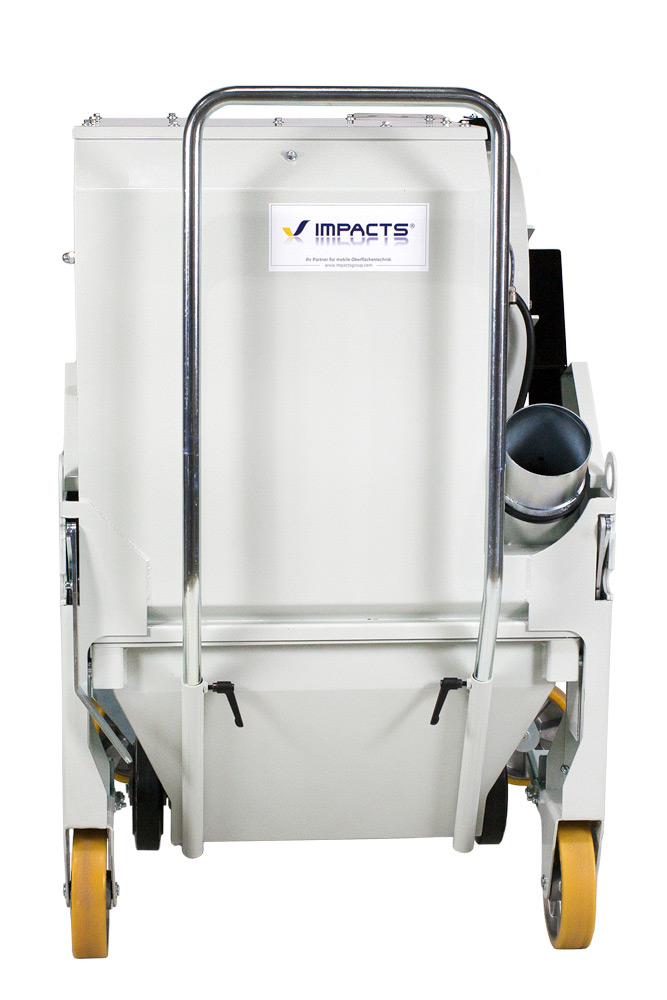

Dustcollector DUSTCOM 2225

Compact and extremely powerful dust collector for medium size to bigger surface

The IMPACTS dust collector DUSTCOM 2225 is a compact and extremely powerful dust collector to be used together with medium size to bigger surface preparation equipment. New innovative details give an optimized handling performance on the job side.

Data sheet download (PDF)

FEATURES

  • All in one “lift lock“ for the dustbin handling.
  • Big, ergonometric optimized dust bin.
  • No edges and obstacles outside the frame.
  • Optimal dimensions, high performance.
  • Low weight.
  • Lifting locks for easy transportation.
  • Electro-pneumatic compressor regulation.
  • Removable, changeable dust host connection.

SPECIFICATION

Model

DC2225

Power consumption

4 kW

Power supply

400 V/50 Hz, 16 A

Airflow

1.000 m³/h

Cleaning

Continiously, pneumatically

Filter-media, -area, dust certification by BIA certificate

4 filter cartridges  22 m²,  dust classification M

Volume dust bin

105 l

Dust hose connection

Standard 130 mm, other diameters on request

L x W x H in mm

1.110 × 802 × 1.228

Weight

271 kg
