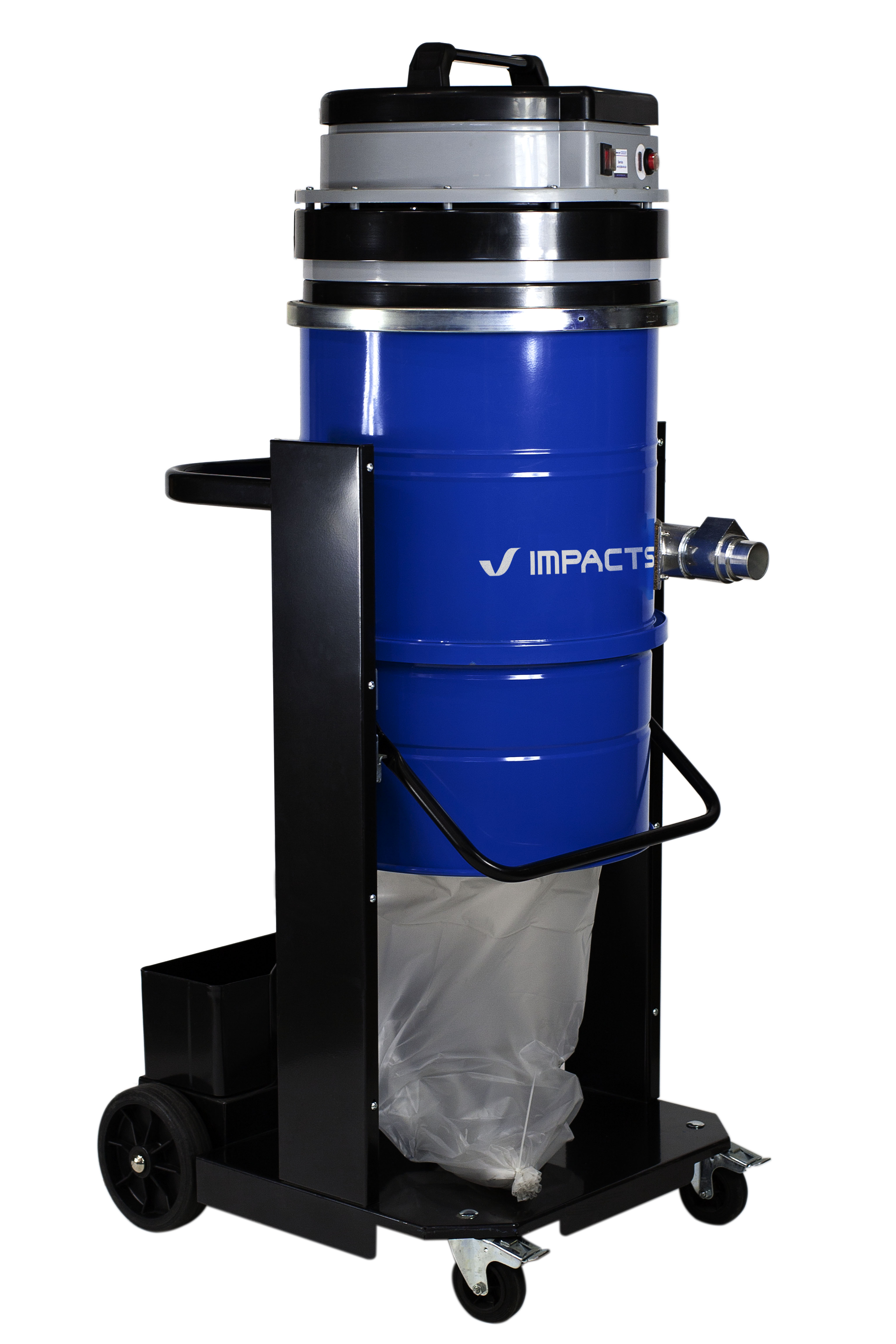

Dustcollector DUSTCOM 3003AR-LP

Especially robust units with a fully automatic cleaning.

IMPACTS dust collector DUSTCOM 3003AR.

A compact, robust and powerful machine, specially designed for hard jobs in surface preparation applications. Three motors with 1.000 Watt power each are the basis for the super strong performance of the DC3003AR. In combination with the 3 m² filtration area (3 cartridges), the automatically cleaning system and the easy handling of the dust bin, or the “Longopack”, the DC3003AR units are setting new standards for dust collectors.

Data sheet download (PDF)
  • Automatically cleaning system.
  • Protected cartridge.
  • Steel body.
  • Pre-separation Inlet.
  • Including two different Inlet diameters.


Model

DC3003AR

DC3003AR-LP

Motors

3 × 1000W

3 × 1000W

Power

3000 W

3000 W

Power supply

230V 50 Hz,16 A delay fuse

230V 50 Hz,16 A delay fuse

Airflow

450 m³/h

450 m³/h

Filtering surface

certification

3 x cartridges

1 m² each, H

3 x cartridges

1 m² each, H

Dust bin capacity

50 l

20m LONGOPAC

Suction inlet

50 mm or 70 mm

50 mm or 70 mm

L x W x H in mm

580 × 600 × 1250

620 × 620 × 1430

Weight

65 kg

80 kg
