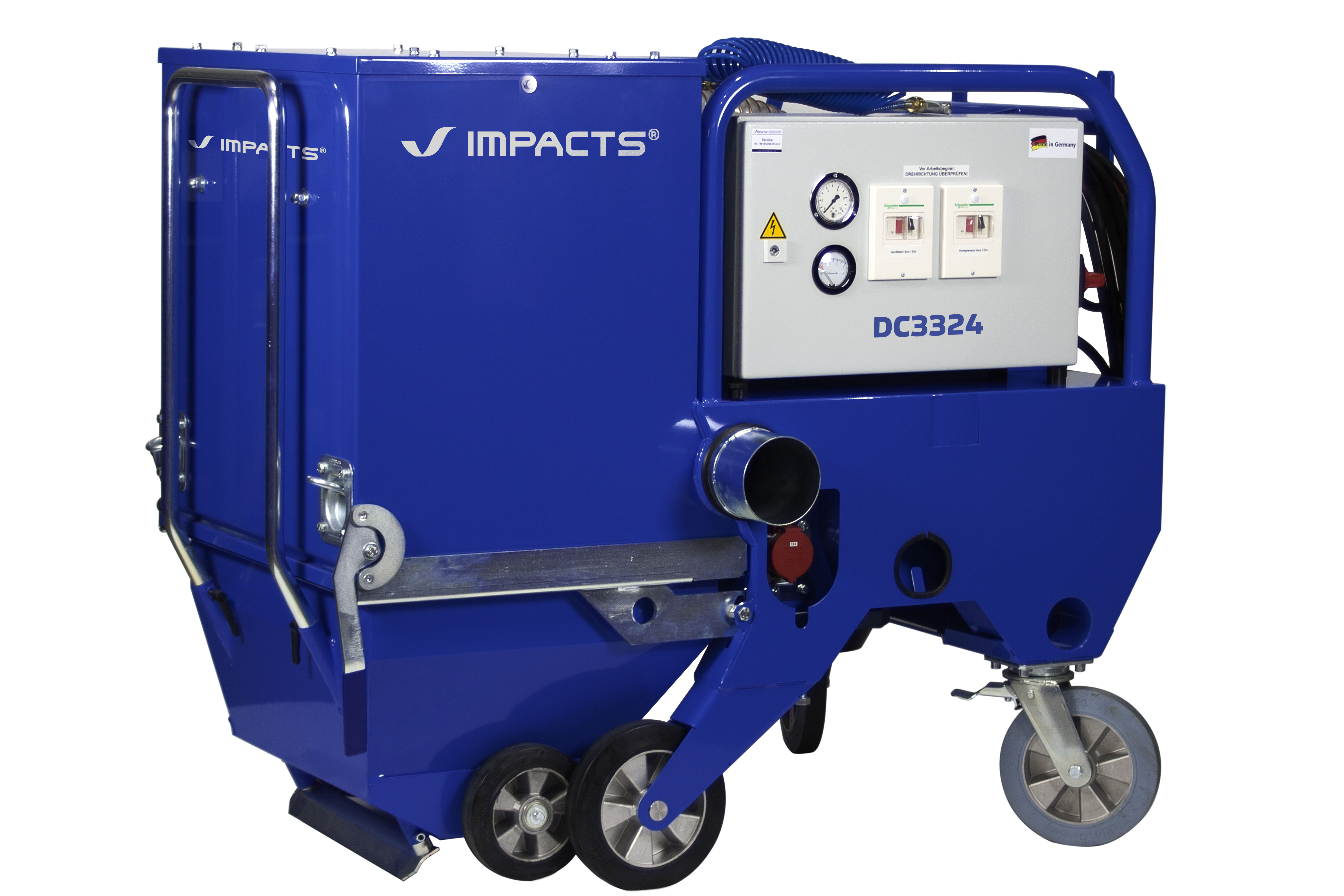

Dustcollector DUSTCOM 3324

Large,ergonomically designed 105 liter dust container

The IMPACTS dust collector DUSTCOM 3324 is a compact and extremely powerful dust collector to be used together with medium size to bigger surface preparation equipment. New innovative details give an optimized handling performance on the job side.



Data sheet download (PDF)

FEATURES

  • All in one “lift lock“ for the dustbin handling.
  • Big, ergonometric optimized dust bin.
  • No edges and obstacles outside the frame.
  • Optimal dimensions, high performance.
  • Low weight.
  • Can be split into two units.
  • Lifting locks for easy transportation.
  • Electro-pneumatic compressor regulation.
  • Removable, changeable dust host connection.

SPECIFICATION


Model

DC3324

Power consumption

5,5 kW

Power supply

400 V/50 Hz, 16 A or 400 V/50 Hz, 32 A, to run a blast machine up to 11 kw from the dust collector

Airflow

1.200 m³/h

Cleaning

Continiously, pneumatically

Filter-media, -area, dust certification by BIA certificate

6 filter cartridges  33 m²,

dust classification M

Volume dust bin

105 l

Dust hose connection

Standard 130 mm, other diameters on request

L x W x H in mm

1.285 × 800 × 1.210

Weight

330 kg
