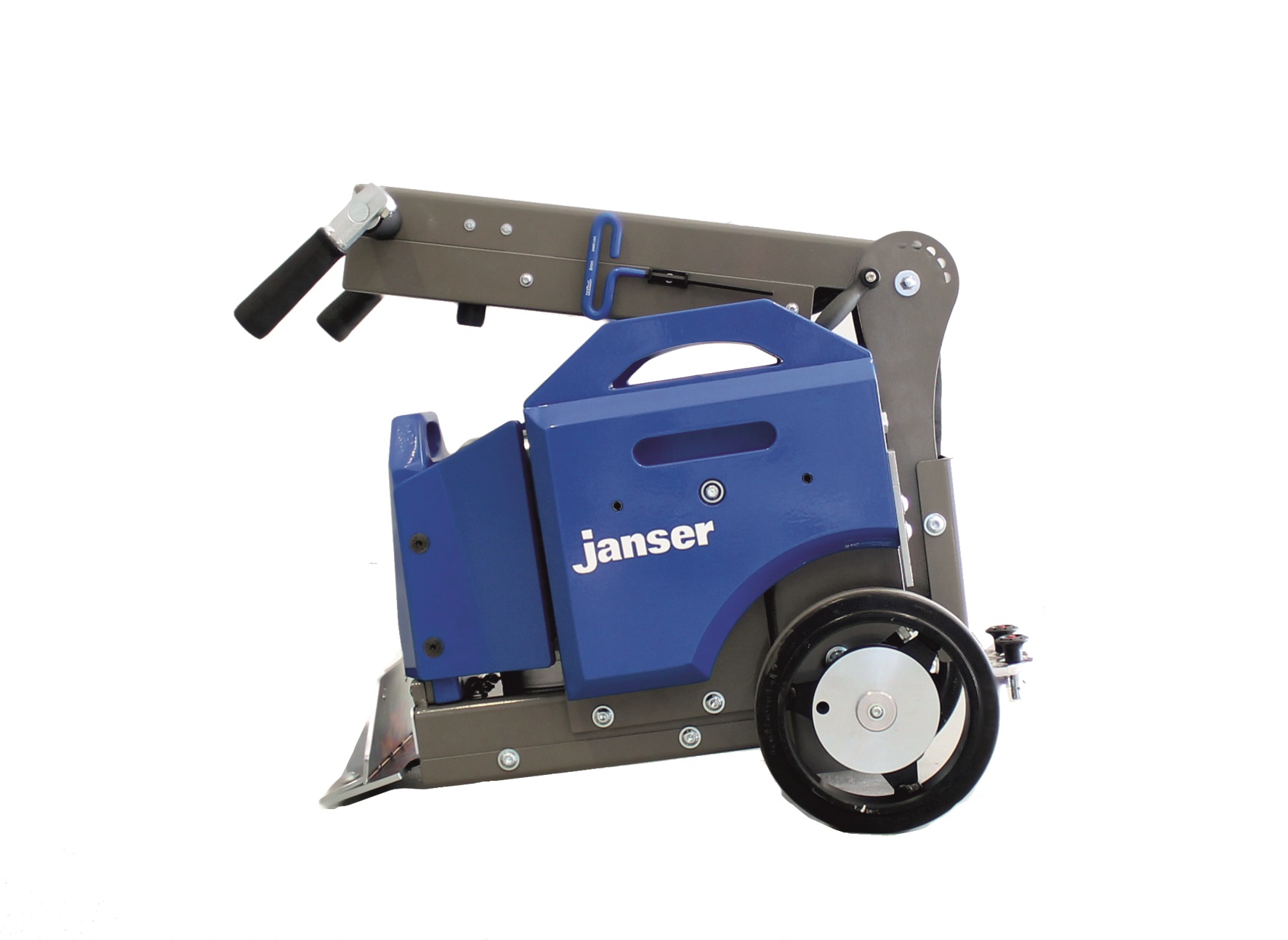

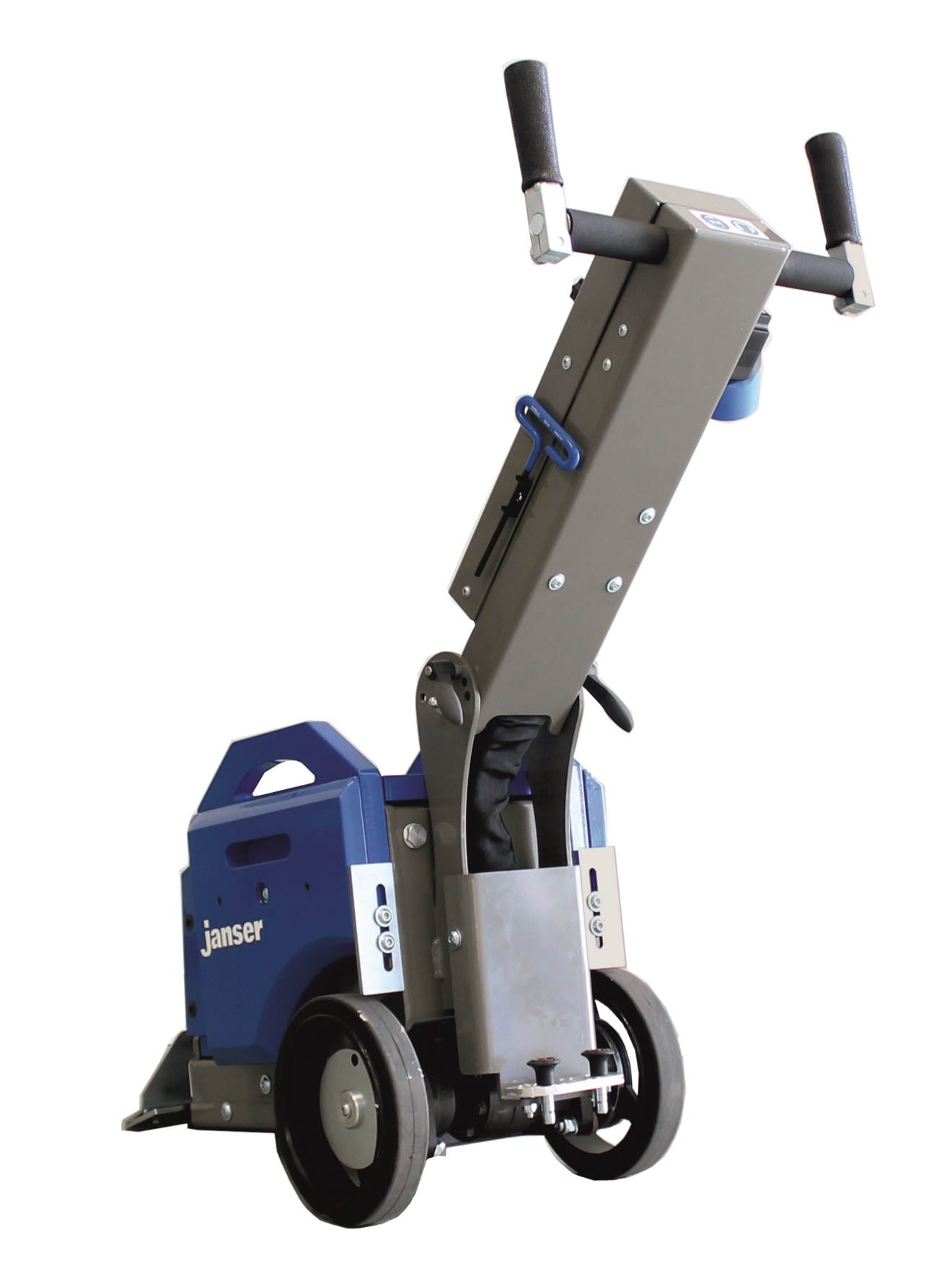

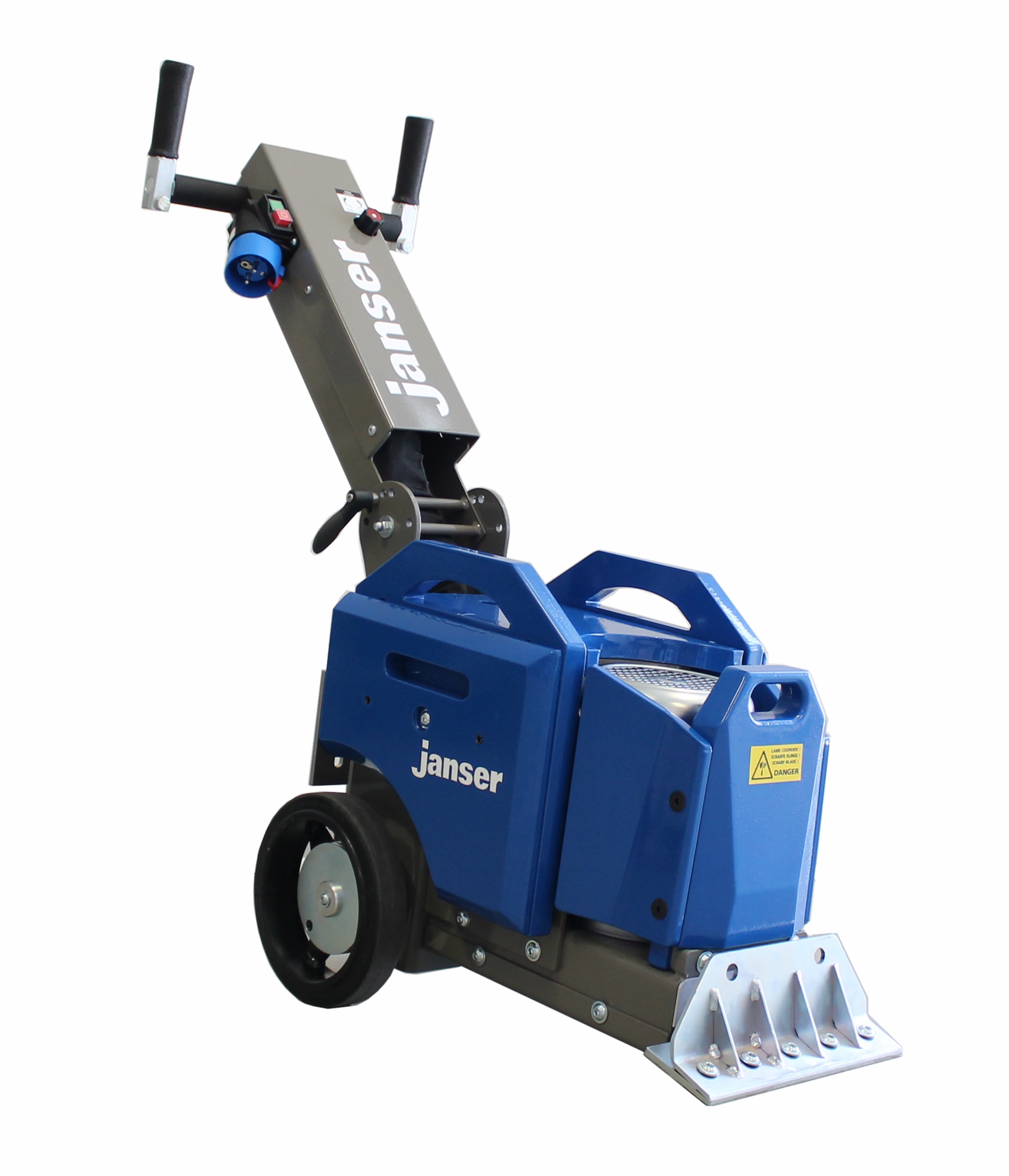

STRATO-MOBIL IV

The new heavy-weight class of the hydraulic walk-behind scraper machine.

The powerful motor combined with the new HYDRAULIC-DIRECT-DRIVE system ensures high output at a very low noise
level.

Data sheet download (PDF)
  • 190 kg well distributed at a maximum speed of 17 m/min
  • The STRATO-MOBIL IV is self-propelled (forward and reserve) with adjustable speed control

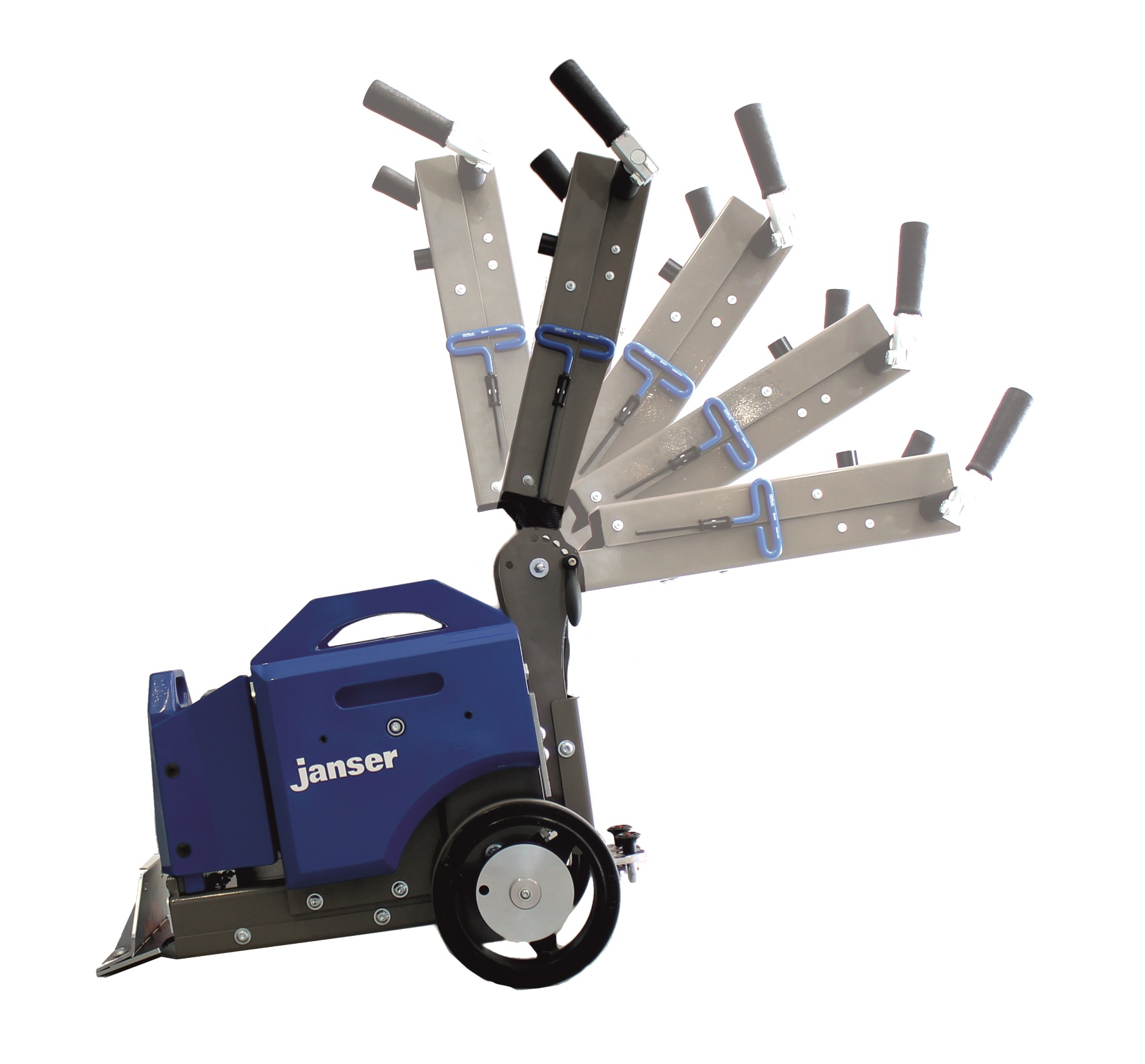

  • Adjustable guide handle in six positions allows ergonomic operation depending on body size or preferred working position
  • Weights can be easily removed for transportation, reducing the net weight of the machine

Model

STRATO-MOBIL IV

Power supply

230 V

Motor power

1,1 kW

Speed infinitely variable

0-23 m /min.

H1, H2 x W x L (mm)

1080mm x 580mm x 730mm x 380mm

Net weight

85 kg (187 Ibs)

Total weight

190 kg (419 Ibs)
