Dustcollector DUSTCOM 5020

Compact , powerful filter system for medium to large surface processing machines.

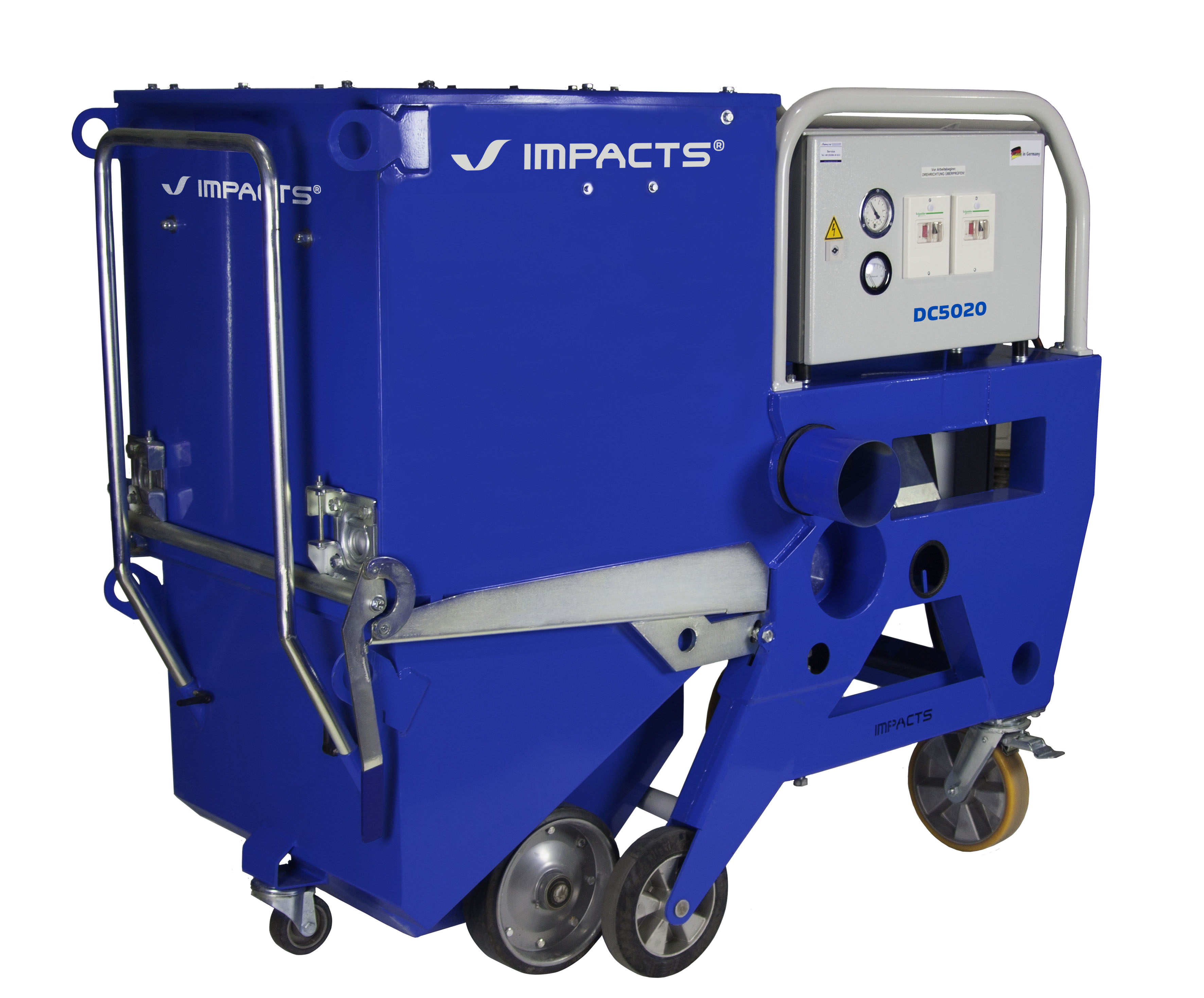

IMPACTS DUSTCOM 5020 is a compact and extremely powerful dust collector to be used together with medium size to bigger surface preparation equipment. New innovative details give an optimized handling performance on the job side.

Data sheet download (PDF)

FEATURES

  • All in one “lift lock“ for the dustbin handling.
  • Big, ergonometric optimized dust bin.
  • No edges and obstacles outside the frame.
  • Optimal dimensions, high performance.
  • Low weight.
  • Lifting locks for easy transportation.
  • Electro-pneumatic compressor regulation.
  • Removable, changeable dust host connection.

SPECIFICATION


Model

DC5020

Power consumption

7 kW

Power supply

400 V/50 Hz, 16 A or 400 V/50 Hz, 16 A

Airflow

1.685 m³/h

Cleaning

continously, pneumatic

Filter- media, -area

Dust certification, BIA certificate

9 Filter cartridges, 45 m²,

dust classification M

Volume dust bin

250 l

Dust hose connection

Standard 150 mm, other diameters on request

L x W x H in mm

1.670 × 800 × 1.443

Weight

450 Kg
