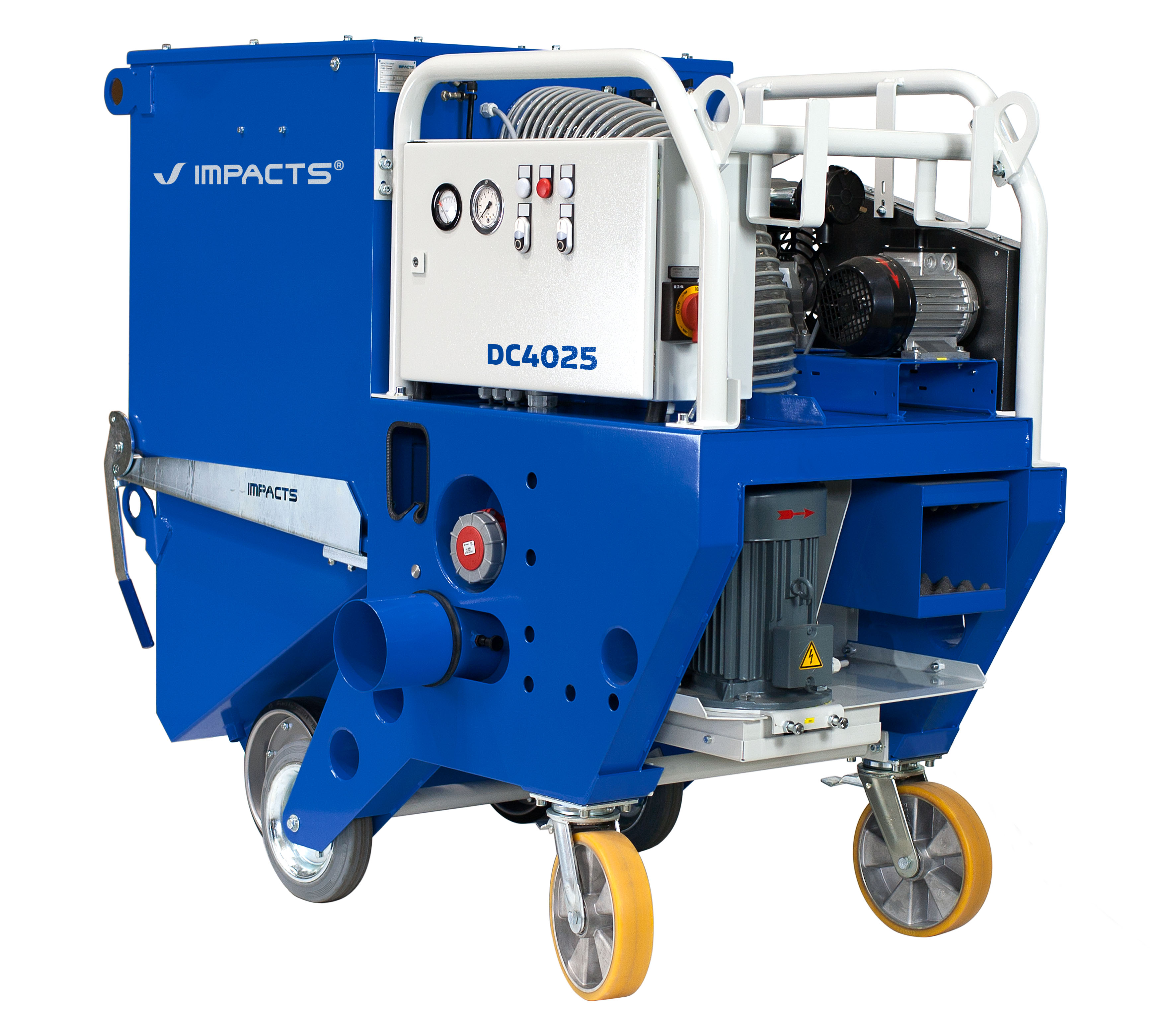

Dustcollector DUSTCOM 4025

Large , ergonomically designed dust container.

IMPACTS DUSTCOM 4025 is a compact and extremely powerful dust collector to be used together with medium size to bigger surface preparation equipment. New innovative details give an optimized handling performance on the job side.

Data sheet download (PDF)

FEATURES

  • Automatically cleaning system.
  • All in one “lift lock“ for the dustbin handling.
  • Big, ergonometric optimised dust bin.
  • No edges and obstacles outside the frame.
  • Optimal dimensions, high performance.
  • Low weight.
  • Can be split into two units.
  • Lifting locks for easy transportation.
  • Electro-pneumatic compressor regulation.
  • Removable, changeable dust hose connection.

SPECIFICATION


Model

DC4025

Power consumption

5,5 kW

Power supply

400 V/50 Hz, 16 A or 400 V/50 Hz, 63 A, to run a blast machine up to 22 kw from the dust collector

Airflow

1.300m³/h

Cleaning

continously, pneumatic

Filter- media, -area

Dust certification, BIA certificate

8 Filter cartridges, 40 m²,

dust classification M

Volume dust bin

200 l

Dust hose connection

Standard 150 mm, other diameters on request

L x W x H in mm

1.620 × 795 × 1.400

Weight

460 Kg
